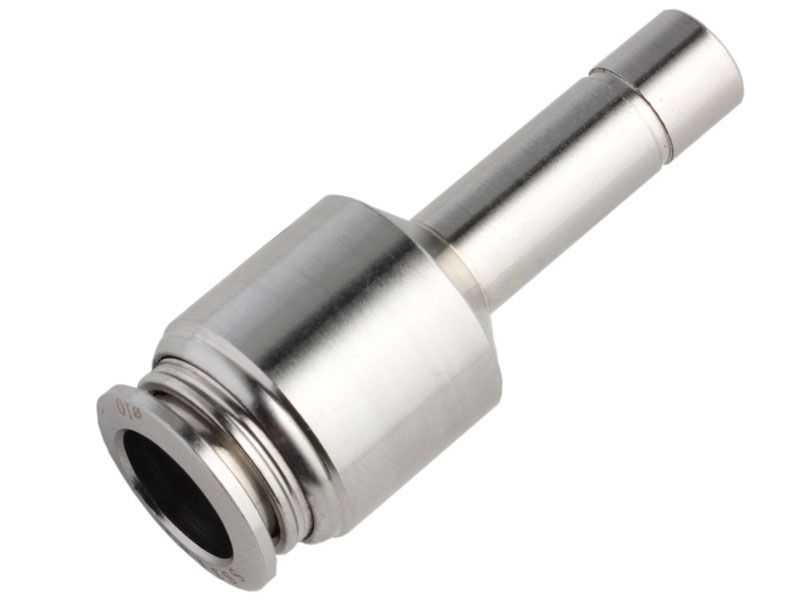

SS316 Push Fitting Plug In ReducerSS316 Push Fitting Bulkhead Female ConnectorSS316 Push Fitting Union Elbow1. High temperature and washdown applications ... use with air, water, oil
2. Stainless steel pneumatic push-to-connect fittings are made with 316 stainless steel bodies and 303 stainless steel gripping collets with internal Viton o-ring. Threaded components are 316 stainless steel.
3.The rugged construction of the fittings allows for use in high temperature applications.
4. The bodies of elbow and tee fittings with threaded connections can be rotated after installation to allow for variations in piping direction.
5. Flexible pneumatic tubing is easily connected by simply inserting the tubing end into the fitting. To release the tubing, press the circular releasing sleeve and the tubing can be easily pulled out
6. Stainless steel fittings can be used with polyurethane, nylon and PTFE tubing among others.
Specification
Applicable Fluid Type: Air, Water,Vacuum
Working Pressure Range: -14 ~150 PSI (-0.99~ 10 Bar)
Working Temperature Range: 5 ℉ ~ 428℉ (-15℃~220℃)
Vacuum Rating to 750mmHg
Recommanded Tubings PA11, PA12, PA6, PE, PU,PTFE,FEP
Applications
Pneumatics, Food Industry, Chemical, Medical and Pharmaceutical Industry
