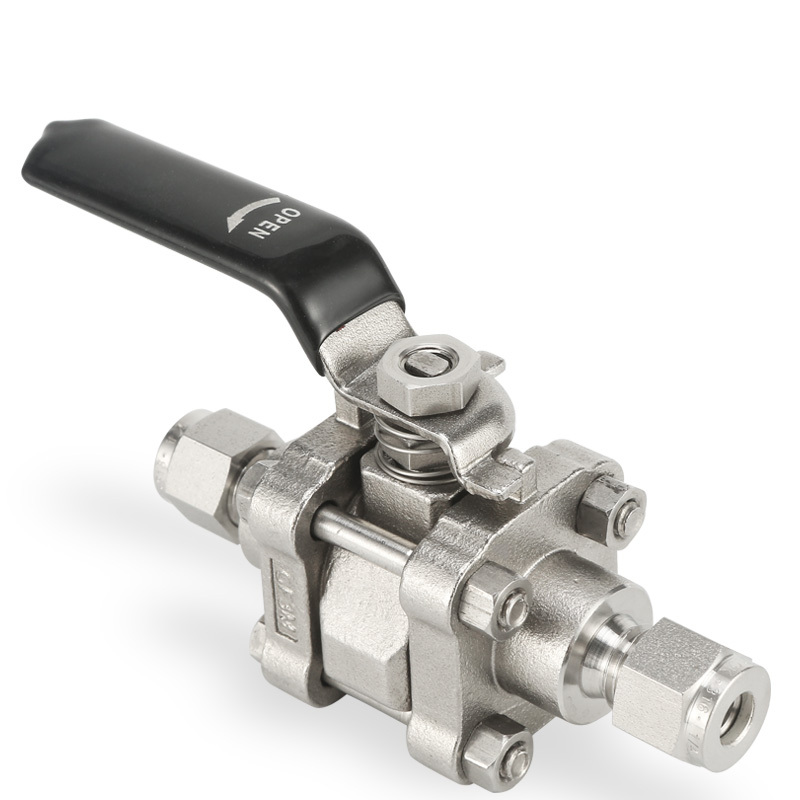

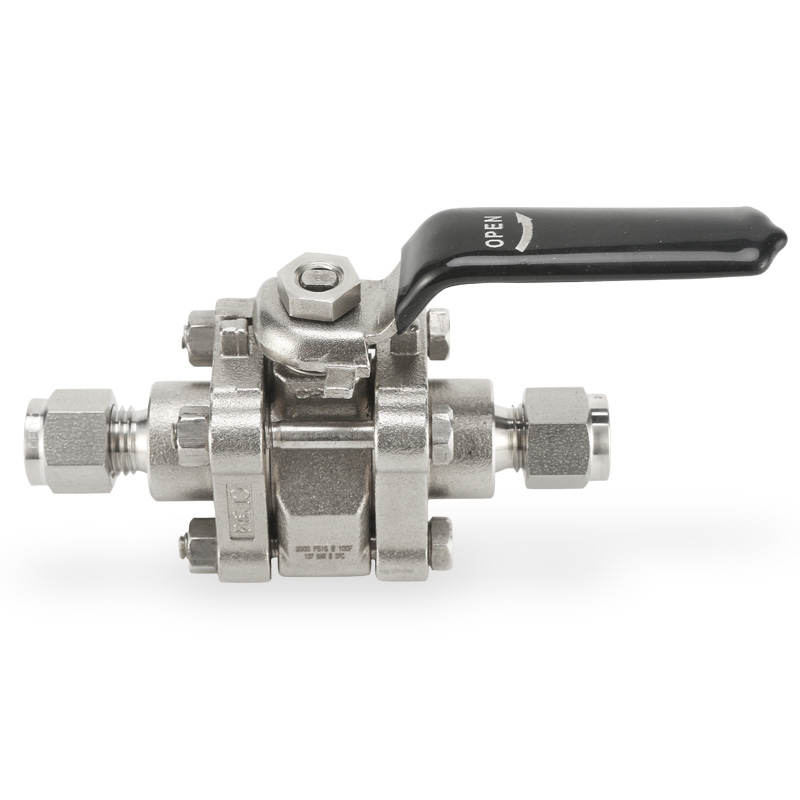

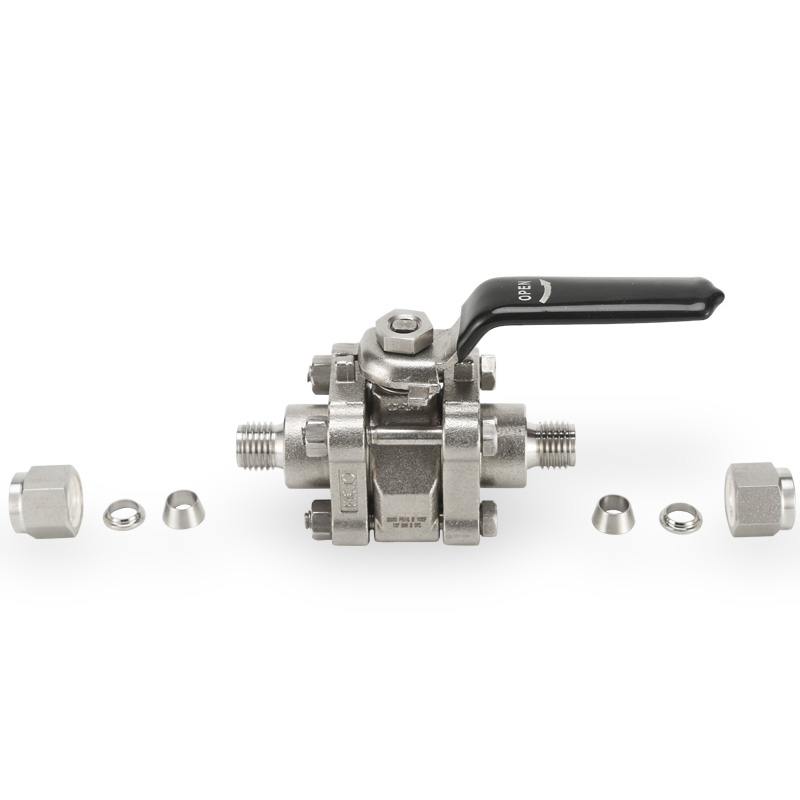

3-Piece Compression Ball Valve
(0)
0 Sold
1/1
Working pressure up to: 1000 psig (69.0 bar)
Working temperature: -20°F to 450°F (-28°C to 232°C)
End connections:
1/8 to 1 thread
1/8" to 1" pipe butt
1/4" to 1" and 6 mm to 25 mm tube butt or socket weld
1/4" to 1" and 6 mm to 25 mm tube fitting
Orifice sizes: 0.19" (4.8 mm) to 1" (25 mm)
Blowout proof stem
Bidirectional flow
